Combiner
a)Technical indexes for two way combiner
TYPE | |
Frequency Range | Channel1: 470~750MHz |
Channel2: 1710~1880MHz&1920~2170MHz&2500~2700MHz | |
Insertion Loss | Channel1:≤0.5dB |
Channel2:≤0.5dB | |
Pass Band Ripple | ≤0.4dB |
Isolation | ≥80dB@470~750 MHz&1710~2170MHz |
≥40dB@1710~2170MHz&2500~2700MHz | |
VSWR | ≤1.3 |
IMD3 | ≤-120dBc@43dBm×2 |
Power capacity | Average:200W |
Impedance | 50Ω |
Connector Type | N-K |
Dimension | 220 mm×150 mm×55 mm (The connector position and installation dimensions based on the actual product shall prevail.) |
Temperature Range | -30~+65℃ |
Price: RME950@200PCS

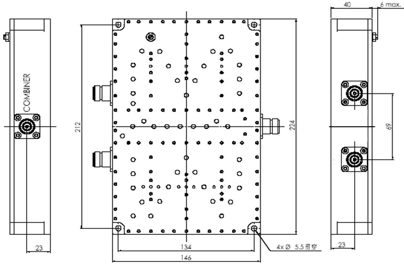

b)Dimension
Combiner

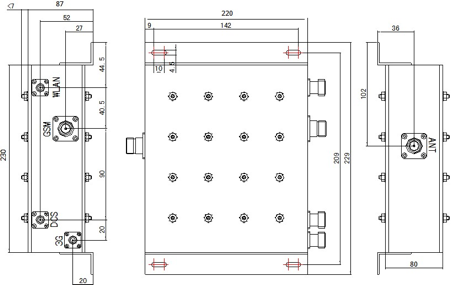

a)Technical indexes
TYPE | |
Frequency Range | Channel1: 470~750MHz |
Channel2: 1710~1880MHz | |
Channel3: 1920~2170MHz | |
Channel4: 2500~2700MHz | |
Insertion Loss | ≤0.5dB |
Pass Band Ripple | ≤0.4dB |
Isolation | ≥85dB@470~750MHz&1710~1880MHz |
≥50dB@1710~1880MHz&1920~2170MHz | |
≥85dB@1920~2170MHz&2500~2700MHz | |
VSWR | ≤1.3 |
IMD3 | ≤-120dBc@43dBm×2 |
Power capacity | Average:200W |
Impedance | 50Ω |
Connector Type | N-K |
Dimension | 230 mm×220 mm×85 mm (The connector position and installation dimensions based on the actual product shall prevail.) |
Temperature Range | -30~+65℃ |
b)Dimension
