Dual Filter

 Technical specification

Application
Outdoor Diplexer to Reject interference at the 1882-1890 MHz
Stop Band
1882-1895 MHz
Stop Band Rejection
> 15 dB (1883-1885 MHz)
> 30 dB (1885-1895 MHz)
Pass Band
1865-1880 MHz (RX)
1770-1785 MHz (TX)

Insertion Loss
< 0.6dB(1770-1785 MHz)
< 0.6 dB  typ  0.8 dB  max  (1865-1880 MHz)
<0.3 dB(890-960MHz)
Return Loss
>18 dB across passband UL and DL
RF Power Handling
100W average, 300W peak
Impedance
50 ohms
Passive Inter-modulation
<-150 dBc typ. (inter-modulation product in RX
@with 2×20W CW signals in Tx)

DC By-pass
Included ( at each diplexer unit)
Connector Type
7/16 DIN female
Operational Temperature
-10℃ ~ +65℃
Relative Humidity
5% ~ 95%

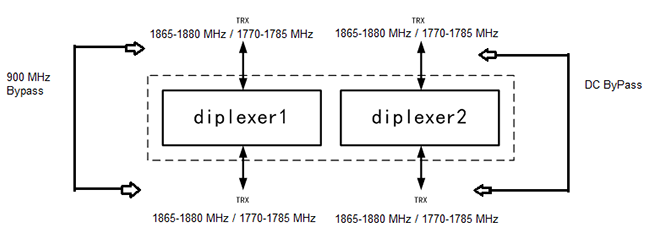

Frequency Bypass
900MHz at each Diplexer
Installation
Wall and pole mounting

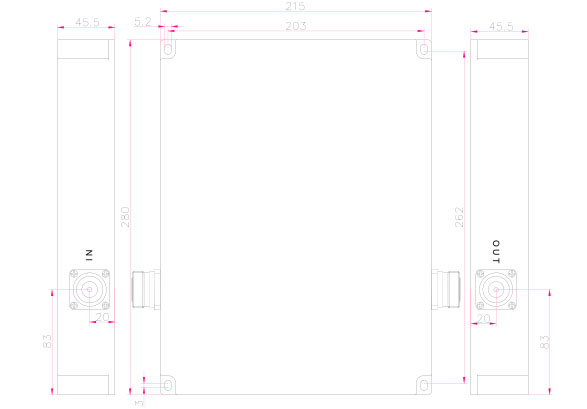

DIMENSIONS
200*280*65mm











-
