Our thermal magnetic imager extract & process the magnetic signal, and overlay on the original thermal infrared signal, which come into being compound signal, in this way to improve the thermal magnetic imager on the capability of penetrate the fog and dust, and longer the detect distance and clarity and builds up layers of the object, compared to infrared imager, themal magnetic imager 30%~50% better and clear on the detect the objective distance, imaging definition,space hierarchy,high Luminous & strong penetrating fog, rain and dust.
Main function:night vision reconnaissance
Main feature:
◆Adopt magnetic signal overlaying on the original thermal signal to improve the capability of penetrate the fog and dust, and longer the detect distance and clarity and builds up layers of the object.
◆un-cold and passive imaging
◆work upon power on, no need to wait initialization and preheat
◆penetrate the fog & dust Efficiently;
◆builds up layers of the object;
◆automatically non-uniformity correction & background makeup,
◆double overview signal output;
◆Light housing of aluminum milling & casting & LED Display screen;
◆Long distance detecting target with manual focus facility.
Technical Specification
imaging resolution: 640×512
viewing angle: 36°× 27°
lens: 75mm germanite glass
detector: high sensitivity, matrix, vanadium oxide, focal plane detection
Video output:PAL
scanning frame rate: 25 frame/s
detect wave:7.2um~14.5um
space detect pixel size : 17um
detect distance:Person: 1.7km, vehicle: 5km
Physical characteristics
external ematerial: space aluminum
working power: Lithium battery 9V~12V(4000mA)
consumption: 300mA
continuous working time: 12 hours
working temperature: -25℃~65℃
display: OLED 800×600
weight: 2.4Kg
host size: 350mm×126mm×96mm

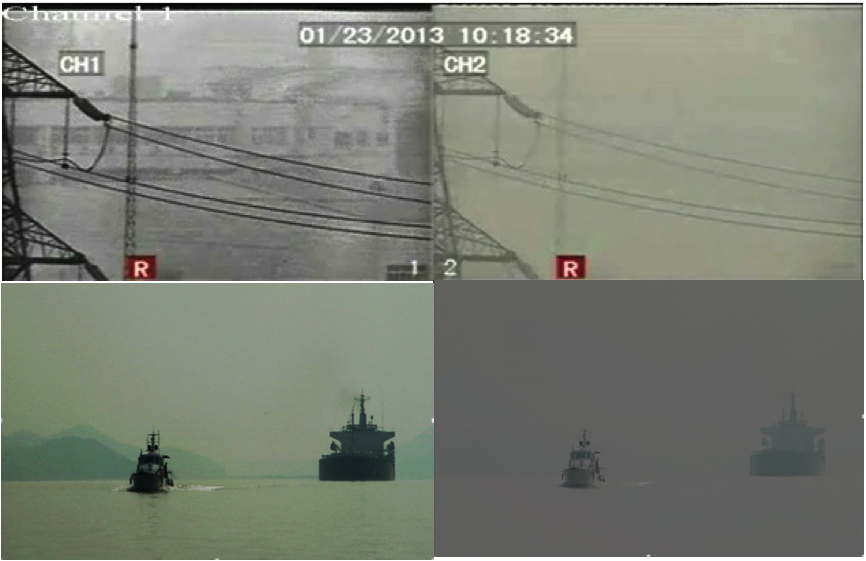

Comparison:
The Left pictures from Thermal magnetic imager
The right pictures from Infrared imager
