Our thermal magnetic imager extract & process the magnetic signal, and overlay on the original thermal infrared signal, which come into being compound signal, in this way to improve the thermal magnetic imager on the capability of penetrate the fog and dust, and longer the detect distance and clarity and builds up layers of the object, compared to infrared imager, themal magnetic imager 30%～50% better and clear on the detect the objective distance, imaging definition,space hierarchy,high Luminous & strong penetrating fog, rain and dust.
Main function：long range night reconnaissance
Main feature:
◆thermal magnetic compound signal detect and overlay processing on compound signal.
◆un-cold and passive imaging
◆work upon power on, no need to wait initialization and preheat
◆penetrate the fog & dust Efficiently；
◆builds up layers of the object；
◆automatically non-uniformity correction & background makeup，
◆double overview signal output；
◆Light housing of aluminum milling & casting & LED Display screen；
◆Long distance detecting target with manual focus facility.
Technical specification
imaging resolution: 640×480
viewing angle: 3.54°× 2.66°(narrow viewing)12.67°×9.52°(broad viewing )
lens: 200mm selenium compound glass
detector: high sensitivity, matrix, polysilicon, focal plane detection
video output：PAL
scanning frame rate: 25 frame/s
detect wave：8.2um～14.5um
space detect pixel size: 17um
optical continuous zoom：＞1-35times
Detecting distance: Person: 4.5km, Vehicle: 9km
Physical characteristics
power consumption: 550mA
working power: DC 9V～12V(8000mA)
storage temperature: -40℃～70℃
continuous working time: 12 hours
working temperature: -25℃～65℃
weight: 17Kg
host size: 436×266×266mm

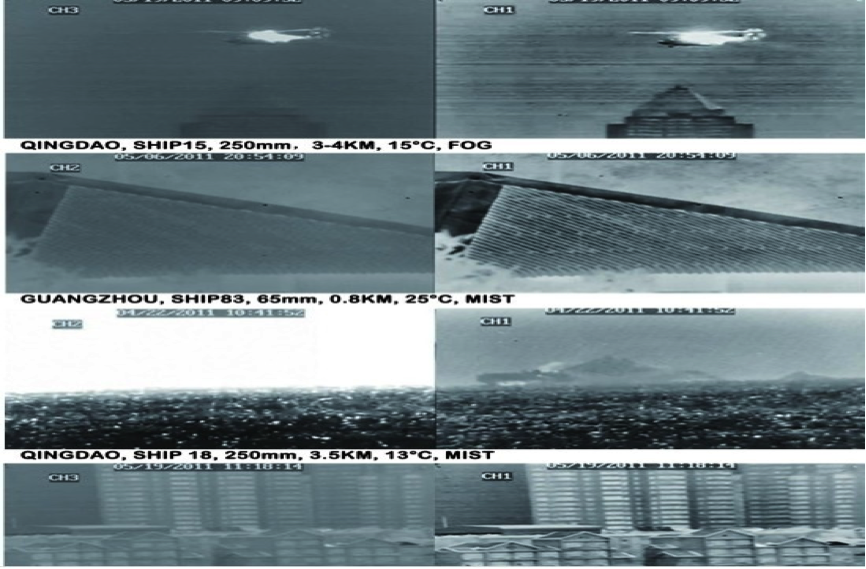

Comparison:
The Right pictures from Thermal magnetic imager
The Left pictures from Infrared imager
